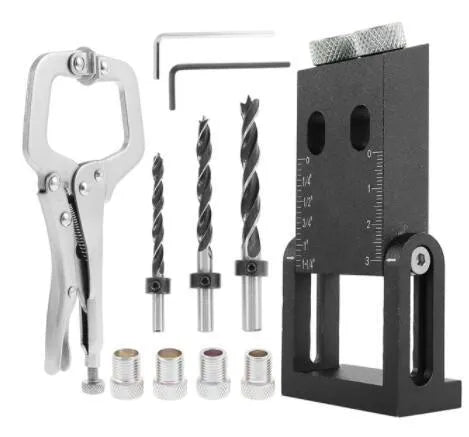

Aluminium Alloy Woodworking Perforation Locator for Dowel and Biscuit Joint Alignment

This woodworking tool is designed to solve a common challenge in furniture making and carpentry: accurately aligning and drilling holes for concealed joints. By using this perforation locator, woodworkers can create strong dowel or biscuit joints without relying solely on manual measurement, which can lead to misalignment and weak connections. The tool's core function is to guide drill bits at a consistent angle and position, ensuring that matching pieces will fit together precisely. Its construction from aluminium alloy offers a balance of durability for repeated use and a weight that is comfortable to handle during operation. The inclusion of multiple drill bit sizes adds versatility, allowing the tool to be used for a range of project scales and joint types.

Features and Construction

The tool integrates several key features derived from its specifications to facilitate accurate wood joinery. Its design centres on providing a reliable guide for hole placement, which is critical for the strength and appearance of finished projects.

Material and Build

The tool body is made from aluminium alloy, a material chosen for its favourable strength-to-weight ratio. This means the locator is robust enough to maintain its shape and guide precision under the pressure of drilling, without being excessively heavy for the user. The black finish mentioned in the source provides a consistent colour scheme. The use of metal construction differentiates it from potentially less durable plastic jigs, offering a longer functional life in a workshop environment.

Size and Practical Fit

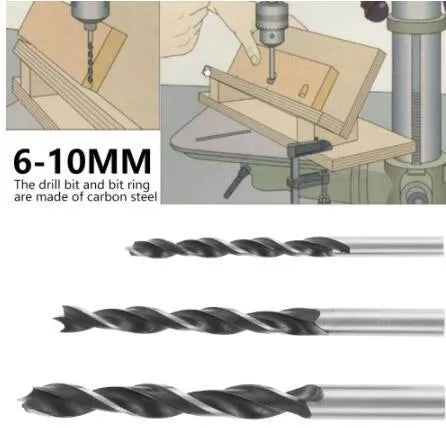

The key specifications are the included drill bit diameters of 6mm, 8mm, and 10mm. These sizes correspond to common dowel and biscuit dimensions, making the tool directly applicable to standard woodworking supplies. The preset 15-degree angle of the sleeve guide is a fixed specification for creating angled joints. This angle is integrated into the tool's design, removing the need for manual angle setting and reducing setup time while increasing repeatability across multiple holes.

Uses and Placement

This tool finds its primary application in scenarios requiring strong, hidden joints in wood assemblies. Its value is in improving accuracy and consistency, which are essential for both aesthetic and structural results.

Event or Professional Use

For professional cabinetmakers, joiners, or serious hobbyists, this tool aids in batch production or complex projects where multiple identical joints are required. The fixed 15-degree angle and guided drilling minimise human error, leading to more reliable assemblies and reduced material waste from mis-drilled pieces. It supports efficiency in a workshop setting by speeding up the layout and drilling process for dowel and biscuit joinery.

Everyday Home Use

For DIY enthusiasts tackling furniture building, shelf construction, or repair projects, this locator simplifies a technically demanding task. It allows users without specialised machinery like dowelling jigs or biscuit joiners to achieve similar, robust joint results using a standard drill. The tool can help build confidence in woodworking by providing a straightforward method for creating strong connections in bookshelves, tables, or frames.

Benefits and Buying Value

The practical benefits of this tool stem from its specific design features, which address common woodworking problems related to joint alignment and hole drilling.

Reuse and Low Maintenance

As a metal tool, it is built for reuse across many projects. The aluminium alloy construction is resistant to wear from repeated use with drill bits. Maintenance is straightforward; keeping the guide sleeves and drill bits clean of wood dust is typically all that's required to maintain accuracy. There are no complex moving parts or electronics that might fail, contributing to a long usable life.

Why Choose This Product

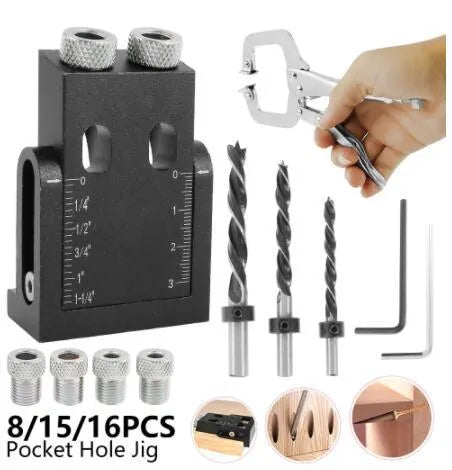

This product offers a focused solution for a specific woodworking task. Its value lies in combining several needed elements—a guide, specific drill bits, and a preset angle—into one dedicated tool. This can be more efficient and potentially more accurate than using separate, improvised methods for marking and drilling joint holes. The availability in different pack sizes (15-piece, 16-piece, 8-piece) as noted in the source may offer options based on the user's need for additional accessories or bits, though the exact composition of these packs should be verified at purchase.
