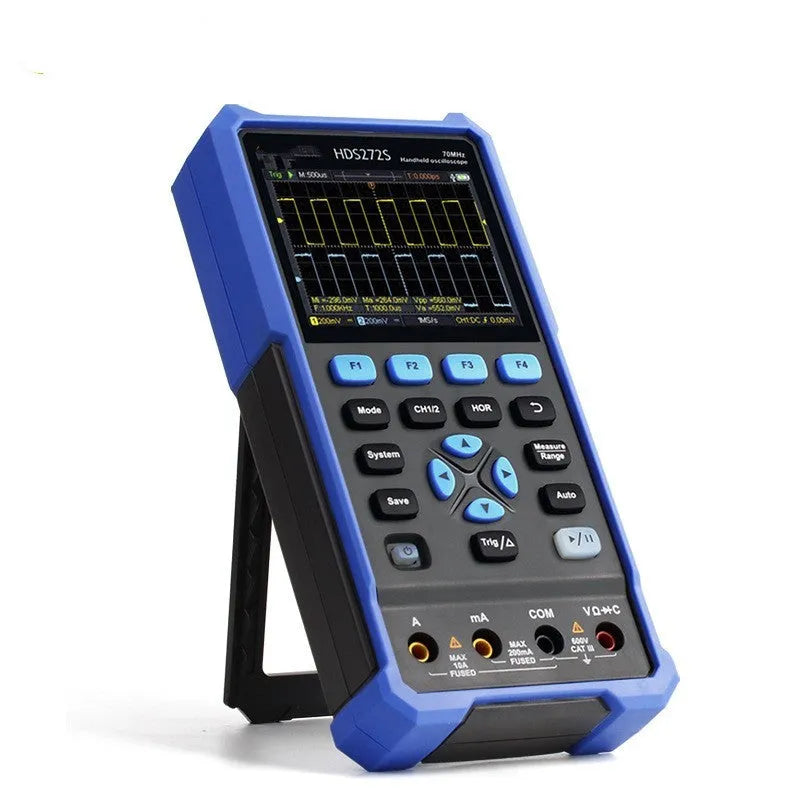

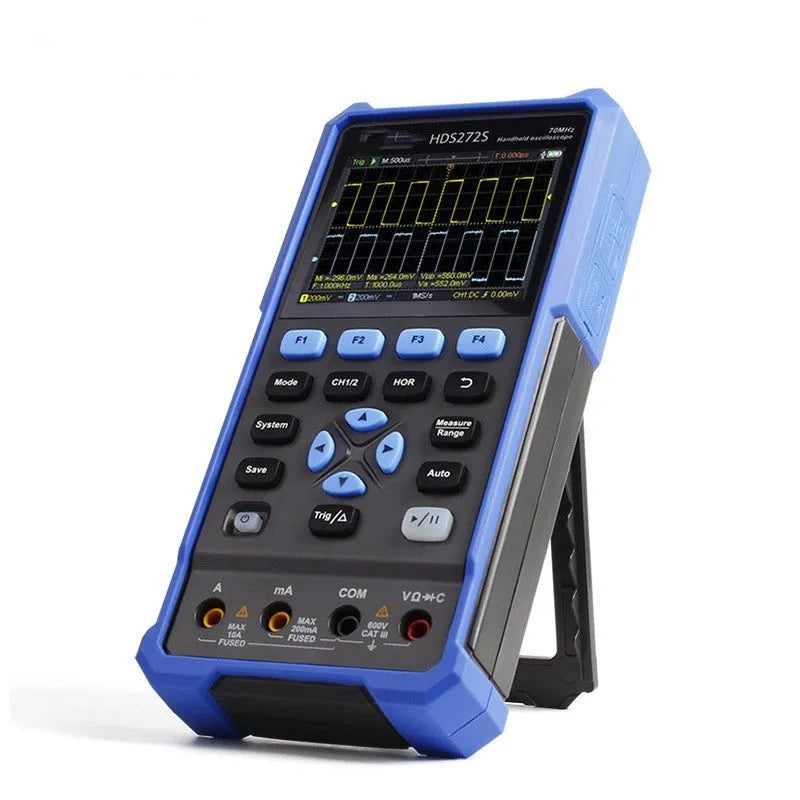

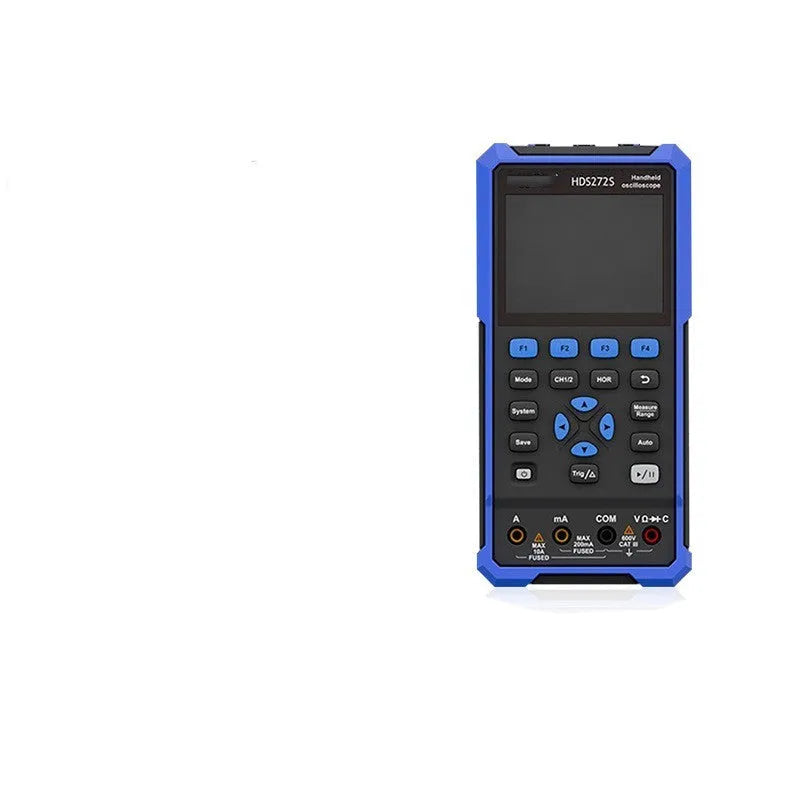

Owon HDS272 Handheld Digital Oscilloscope for Automotive Repair and Electronics Testing

The Owon HDS272 represents a portable diagnostic instrument combining oscilloscope and multimeter functionality in a handheld format measuring 198mm by 38mm by 96mm. Designed for automotive technicians and electronics engineers requiring on-site measurement capabilities, this device operates within a 40-70 MHz bandwidth range suitable for most automotive electrical systems and general electronic circuits. With its complete accessory kit including carrying bag, probes, and connectors, the HDS272 provides immediate deployment for fieldwork without additional equipment purchases. The unit's compact dimensions facilitate easy transport between workshop locations while maintaining comprehensive diagnostic functionality.

Features and Construction

The Owon HDS272 handheld oscilloscope integrates multiple measurement technologies into a single portable device. Its construction follows standard handheld electronics instrument design principles with accessible controls and display interface. The inclusion of various probes and connectors supports flexible signal connection scenarios commonly encountered in automotive and electronics diagnostics work.

Material and Build

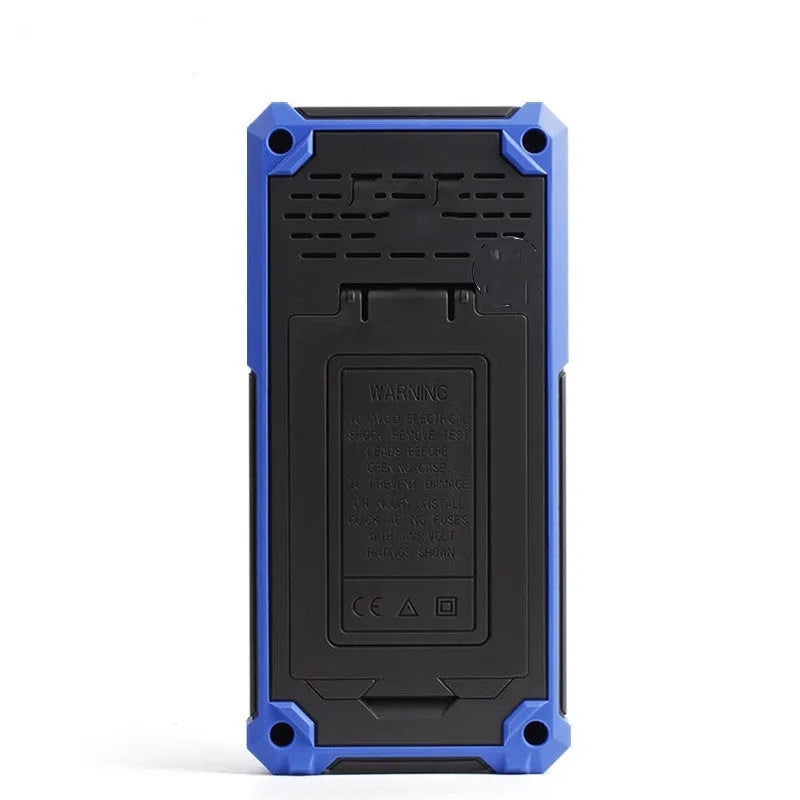

Constructed as a handheld digital instrument, the Owon HDS272 features durable housing materials typical of portable test equipment. The device incorporates standard electronic components appropriate for its 40-70 MHz bandwidth specification and 250MSa/s sampling rate capability. All connection points utilise industry-standard BNC interfaces compatible with the supplied probe accessories and crocodile clip connectors for versatile signal attachment.

Size and Practical Fit

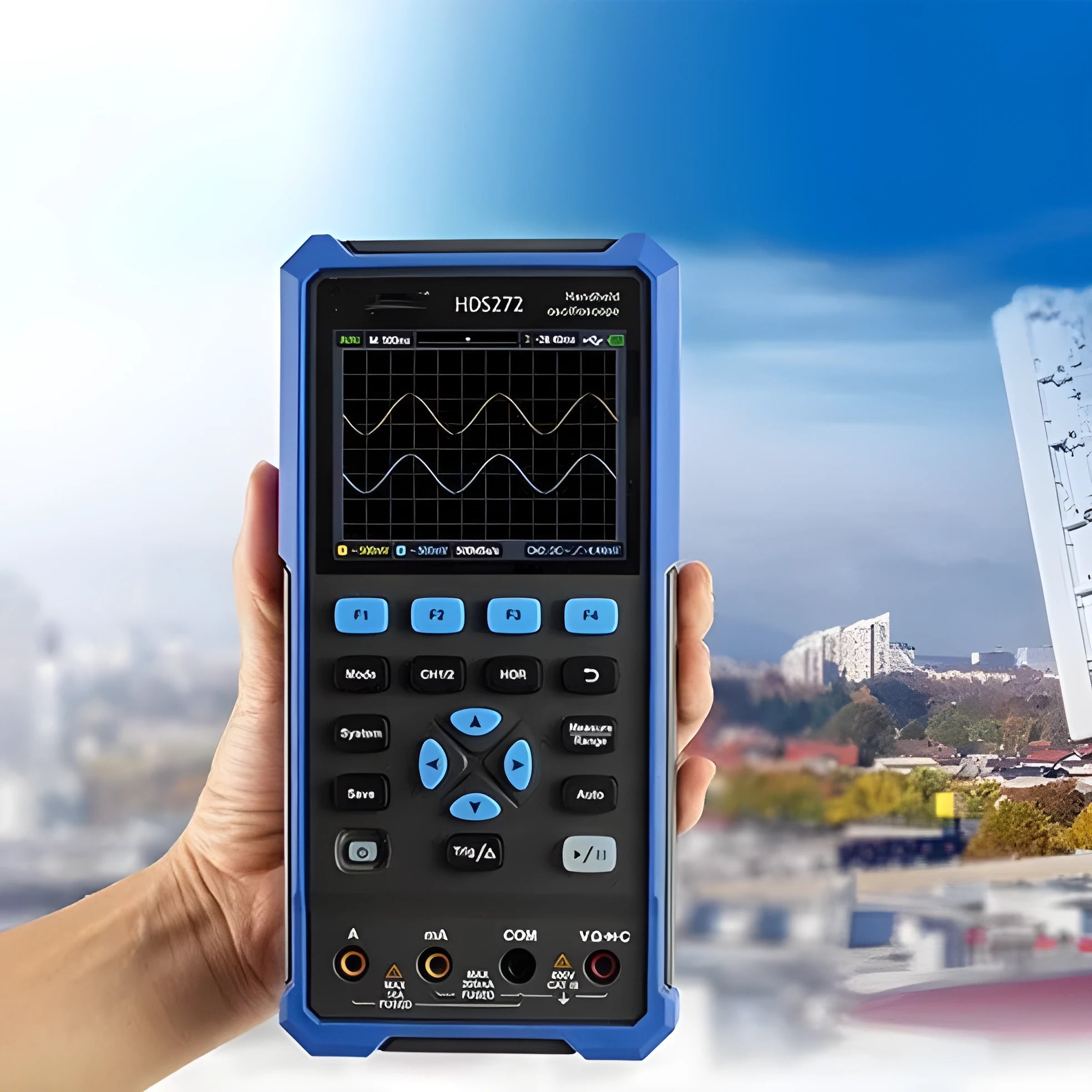

With dimensions measuring 198mm in length, 38mm in width, and 96mm in depth, the oscilloscope maintains a genuinely portable form factor. This compact size enables storage in the included carrying bag alongside all accessories. The handheld design permits single-person operation in confined workshop spaces or vehicle engine bays where bench-top oscilloscopes would prove impractical.

Uses and Placement

The portable nature of the Owon HDS272 oscilloscope supports diverse application environments beyond traditional laboratory settings. Its wave table functionality combined with multimeter capabilities creates a versatile diagnostic toolset for professionals and technicians working across multiple locations.

Event or Professional Use

Automotive repair technicians will find the 40-70 MHz bandwidth particularly suitable for diagnosing vehicle electrical systems including ignition waveforms, sensor signals, and communication bus monitoring. The 10000 waveforms per second capture rate ensures transient events in automotive circuits can be detected during road testing or workshop diagnostics. Field service engineers benefit from the complete accessory kit eliminating the need for separate tool procurement at each job site.

Everyday Home Use

Electronics hobbyists and makerspace participants can utilise the portable oscilloscope for circuit debugging and signal observation across various projects. The inclusion of BNC to crocodile clip connectors simplifies connection to prototype boards and existing equipment. Home-based automotive enthusiasts can perform basic vehicle electrical diagnostics without investing in larger, stationary bench equipment.

Benefits and Buying Value

The Owon HDS272 handheld oscilloscope delivers practical advantages through its comprehensive accessory inclusion and portable design. Rather than purchasing individual components separately, users receive a complete measurement system ready for immediate deployment across multiple application scenarios.

Reuse and Low Maintenance

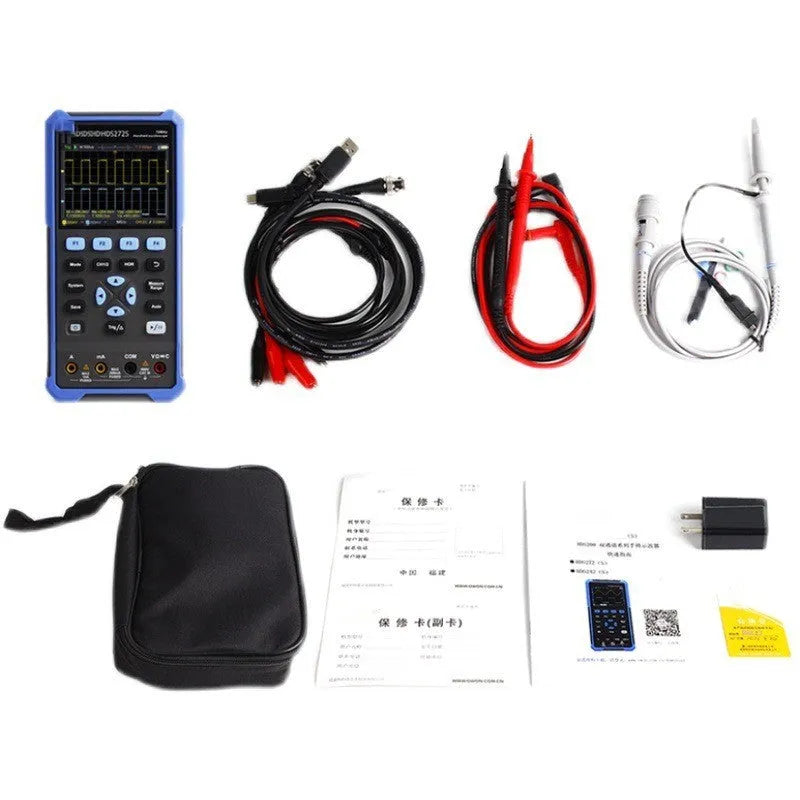

All supplied accessories including the oscilloscope probe pen, multimeter pen, USB cable, and BNC connectors support repeated use across multiple projects and diagnostic sessions. The portable carrying bag provides organised storage protecting the instrument during transport between locations. Standard connection interfaces ensure compatibility with additional probes or accessories should expansion become necessary.

Why Choose This Product

Selection of the Owon HDS272 handheld oscilloscope is justified by its combination of specified bandwidth, sampling rate, and complete accessory package in portable dimensions. The 40-70 MHz bandwidth covers common automotive and electronics frequencies while the 250MSa/s sampling rate supports accurate waveform reproduction. Unlike basic multimeters, this device captures time-varying signals essential for diagnosing intermittent faults and complex waveforms in modern electrical systems.
