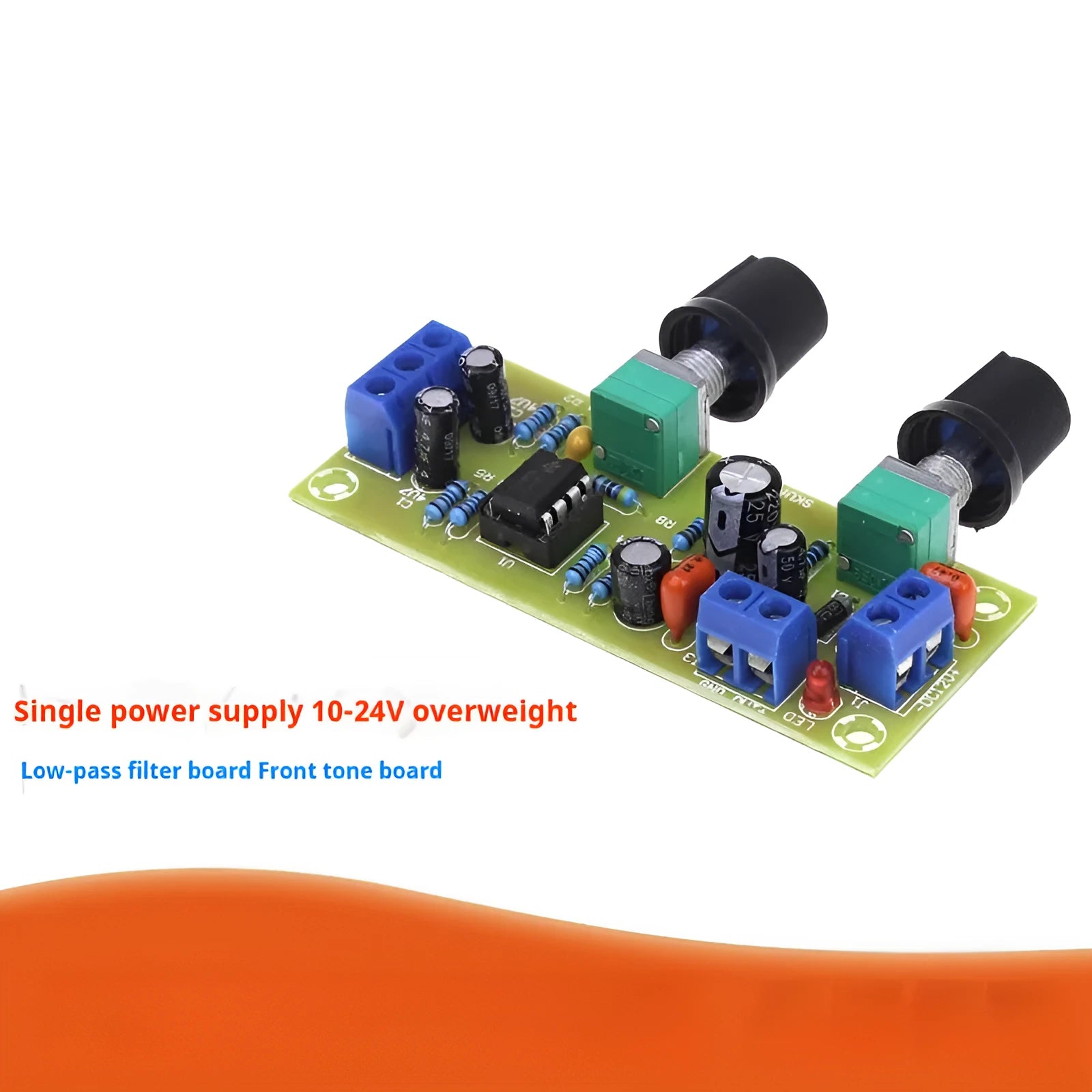

Front stage audio board with single 10-24V power supply, super dynamic bass boost, 78x32mm FR-4 fibreglass PCB, 22-300Hz frequency range for mono or dual channel input to mono output applications
Single Power Supply 24V / AGP
£12.75
Sale price
£12.75
Regular price
Skip to product information
This 78x32mm front stage audio board provides bass frequency enhancement specifically within the 22-300Hz range, making it suitable for applications requiring low-frequency reinforcement without complex amplifier systems. The board operates on a single 10-24V DC power supply, eliminating the need for multiple voltage rails and simplifying power connection requirements. With mono or dual channel audio input capability delivering mono output, it offers connection flexibility for various audio sources while maintaining straightforward signal routing. The super dynamic bass boost function targets specific frequency enhancement rather than full-range amplification, providing focused audio processing for installations where space and power constraints exist alongside bass improvement needs.
The board's design centres on practical audio processing with specific technical parameters that define its application range and installation requirements.
This front stage board suits specific audio enhancement scenarios where bass frequency reinforcement is required without full amplifier system complexity.
Practical advantages stem from the board's specific technical parameters and physical construction rather than generalised performance claims.
Front stage audio board with single 10-24V power supply, super dynamic bass boost, 78x32mm FR-4 fibreglass PCB, 22-300Hz frequency range for mono or dual channel input to mono output applications
£12.75
Sale price
£12.75
Regular price
Front stage audio board with 10-24V single power supply and super dynamic bass boost function
Features and Construction
Material and Build

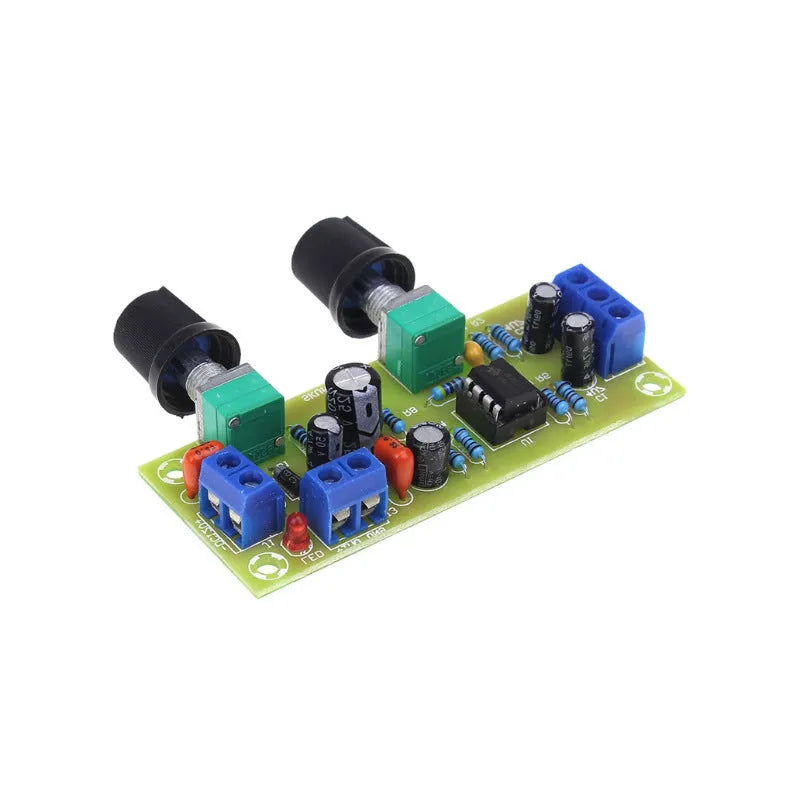

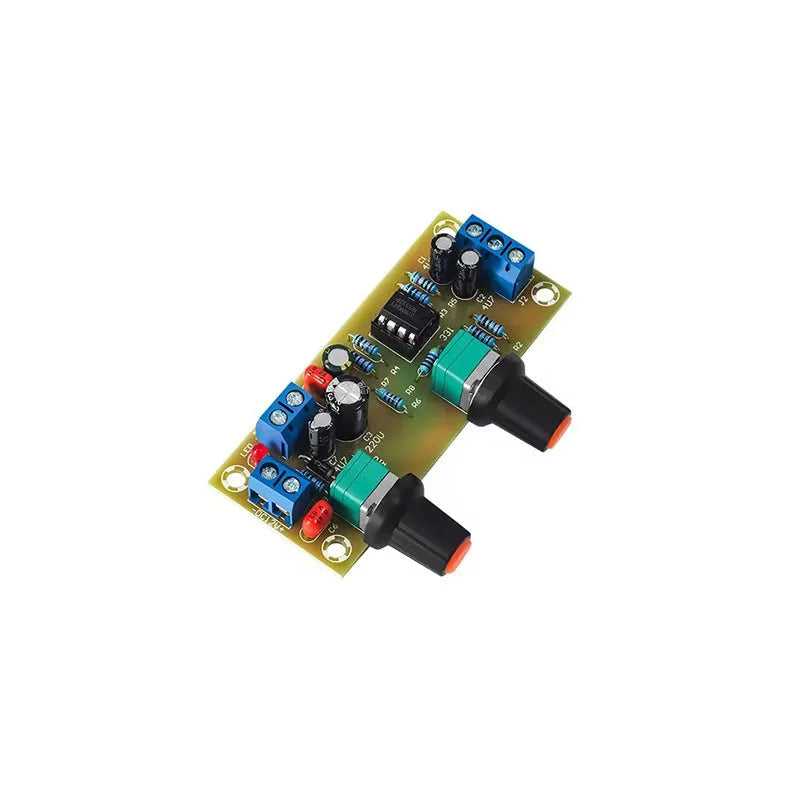

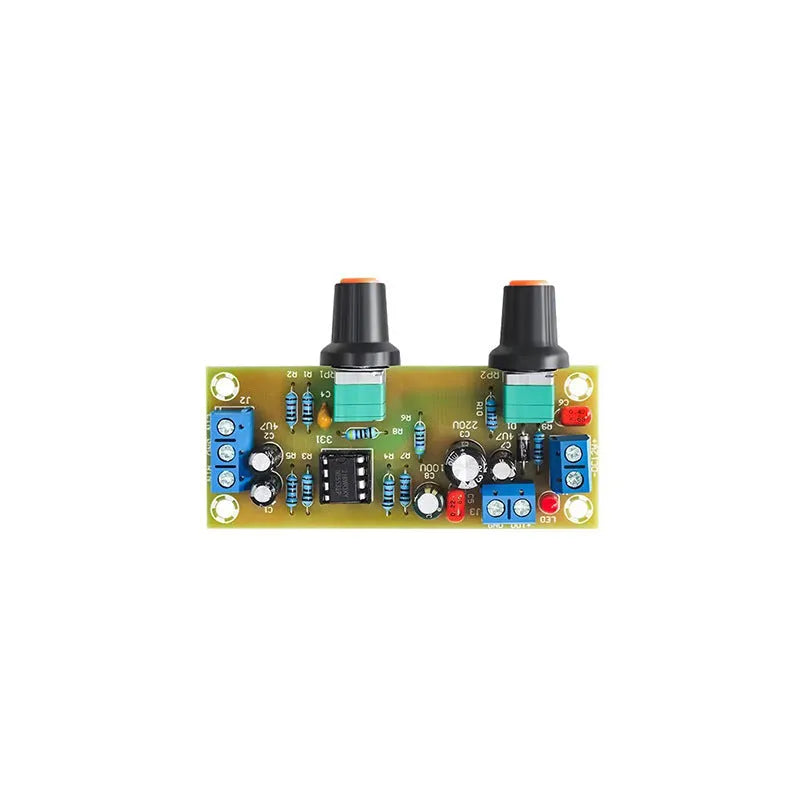

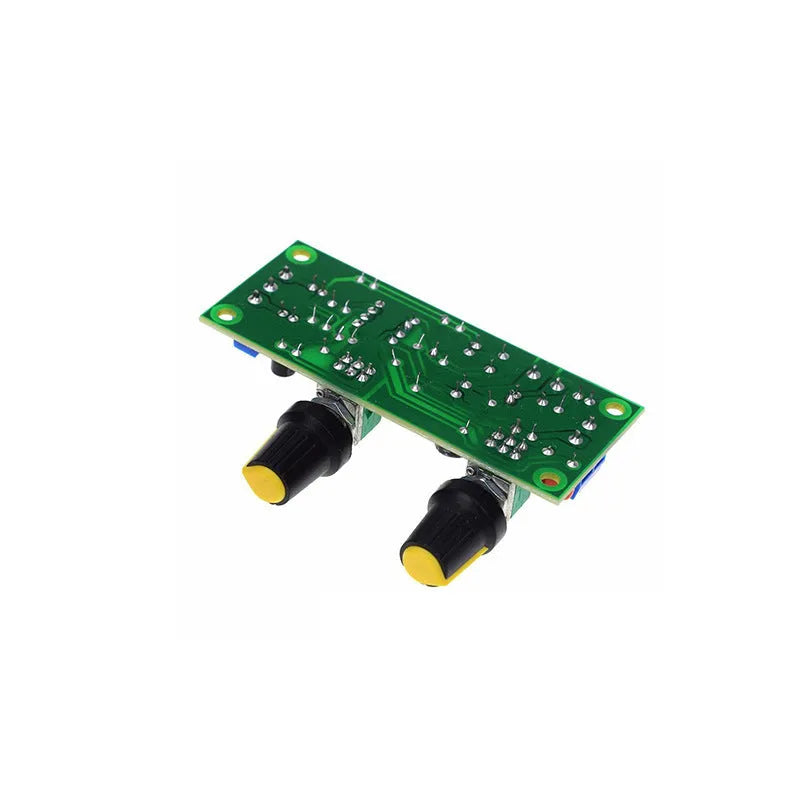

Constructed using super hardness FR-4 fibreglass PCB material, the board measures 1.6mm thick to provide structural rigidity for component mounting while maintaining a compact 78x32mm footprint. This material choice offers stability for electronic components across the operating temperature range typical for audio equipment, without introducing unnecessary bulk or weight. The 30g net weight contributes to minimal load addition in installations where weight considerations matter, particularly in mobile or suspended applications. Component placement accommodates the specified potentiometer shaft spacing of 32.5mm between controls, allowing for standard knob fittings and adjustment access.Size and Practical Fit
With dimensions of 78mm by 32mm, the board occupies minimal space while providing the specified audio processing functions. The plate fixing holes positioned with 70x24mm centre spacing and 3.2mm diameter accommodate standard M3 mounting hardware commonly available for electronic enclosures and chassis. This spacing allows for secure mounting in various orientations while maintaining access to connection points and control adjustments. The compact form factor combined with the mounting hole placement makes integration possible in space-constrained installations where traditional amplifier modules might not fit.Uses and Placement
Event or Professional Use
In professional audio setups, the board can serve as a dedicated bass enhancement stage before power amplification, particularly where existing systems lack adequate low-frequency response. The 22-300Hz frequency range specifically targets the fundamental frequencies of bass instruments and vocal warmth, making it applicable for live sound reinforcement needing focused bass improvement. The single power supply requirement from 10-24V DC allows integration with existing power systems in portable PA equipment, avoiding the need for additional power conditioning equipment. Mono output configuration suits applications where audio will be summed to mono anyway, such as centre channel reinforcement or distributed sound systems.Everyday Home Use
For home audio enthusiasts, the board offers a compact solution for enhancing bass response in existing systems without replacing entire amplifier sections. The ability to accept either mono or dual channel input makes it compatible with various source equipment, from smartphone headphone outputs to traditional stereo preamplifiers. Installation in custom speaker builds or existing cabinet modifications is facilitated by the small footprint and straightforward mounting requirements. The bass boost function specifically within the 22-300Hz range avoids excessive sub-bass reinforcement that might overwhelm typical home listening environments while still providing noticeable low-frequency enhancement.Benefits and Buying Value
Reuse and Low Maintenance
Why Choose This Product</h3 This front stage board offers a specific solution for bass frequency enhancement within defined parameters, making it suitable when requirements align with its 22-300Hz processing range and single power supply operation. The combination of compact dimensions with complete bass boost functionality provides value where space constraints exist alongside audio improvement needs. Compared to more complex multi-board solutions, the integrated design reduces interconnection requirements while still delivering focused audio processing. The inclusion of all necessary mounting specifications enables proper installation planning, reducing trial-and-error during integration with existing systems or custom builds.
