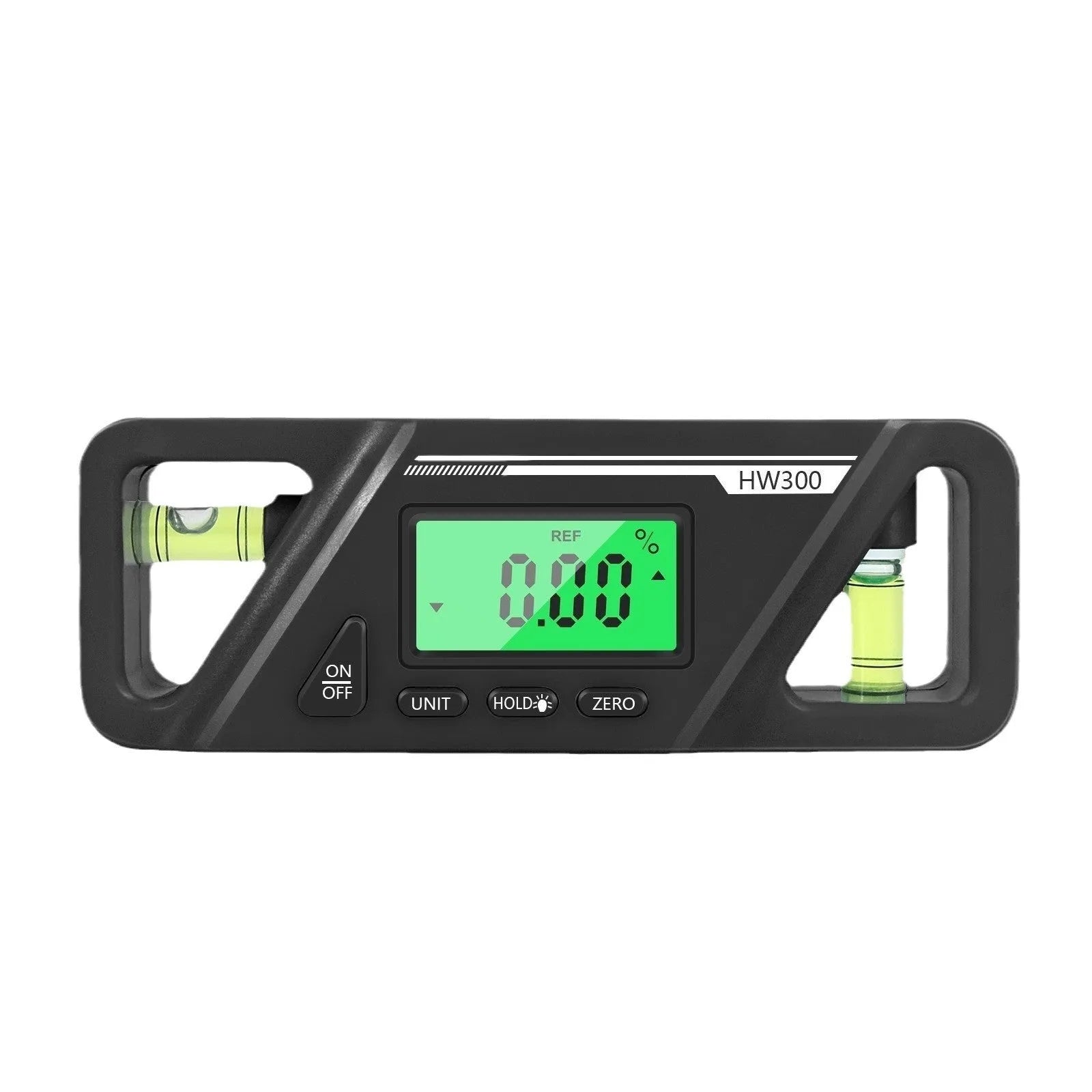

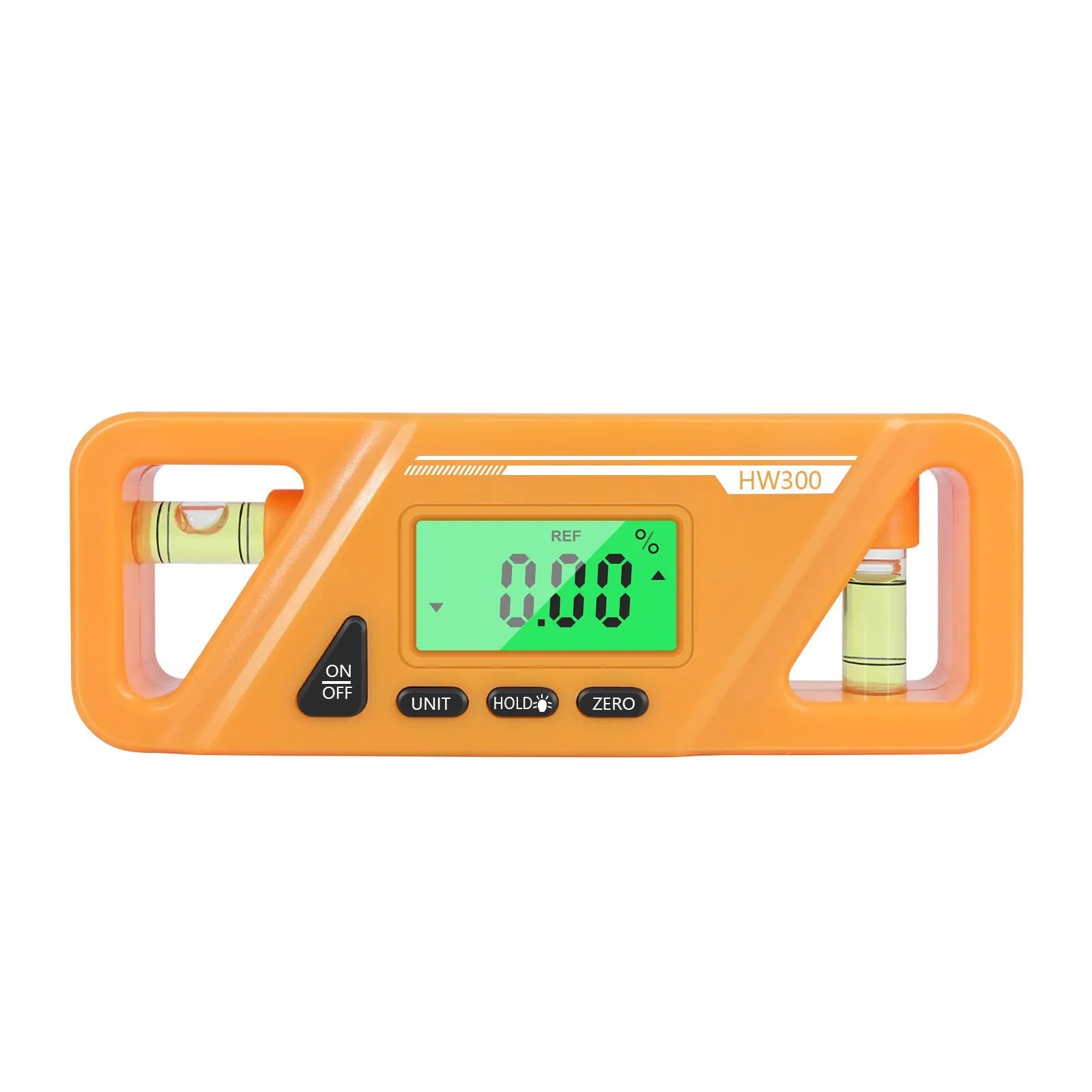

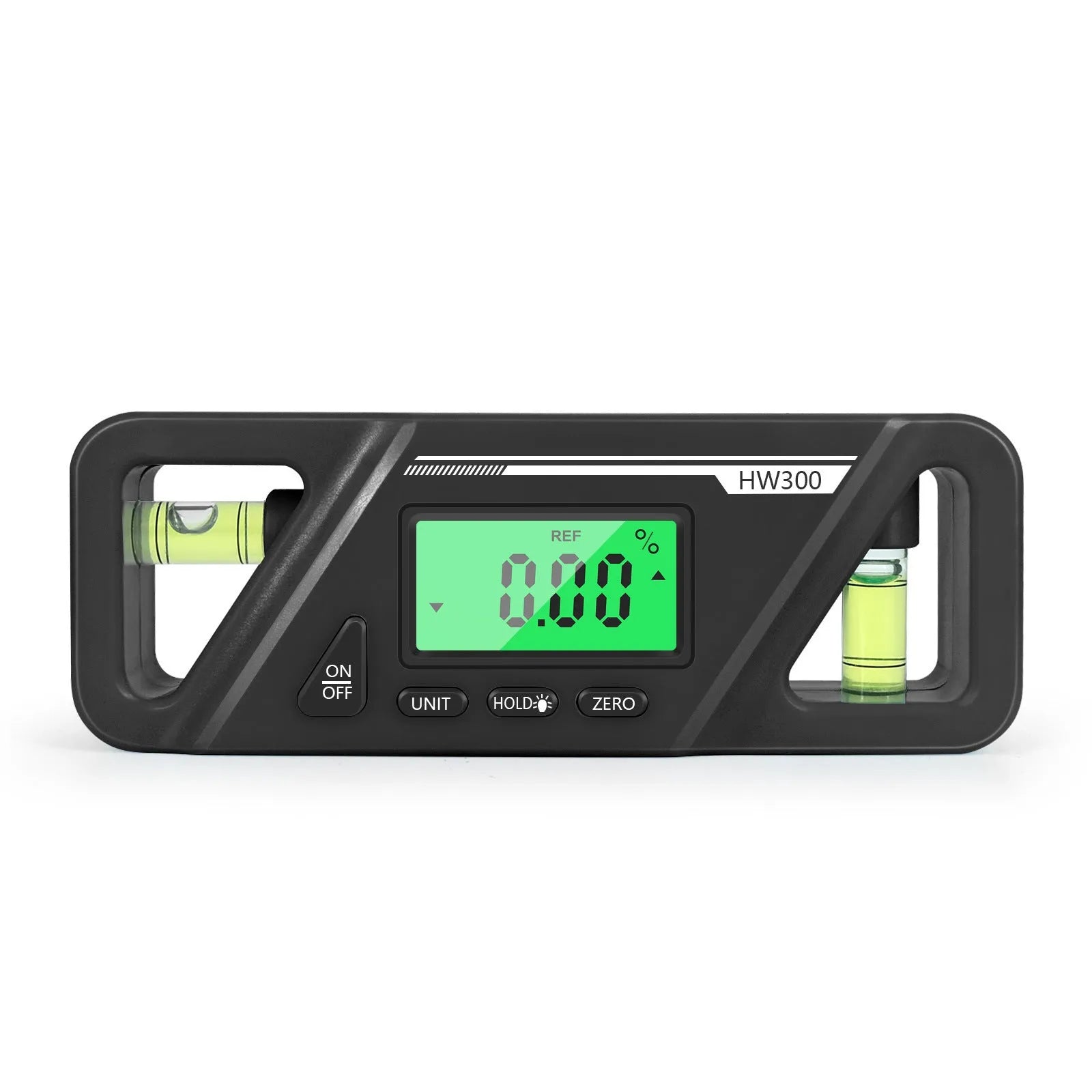

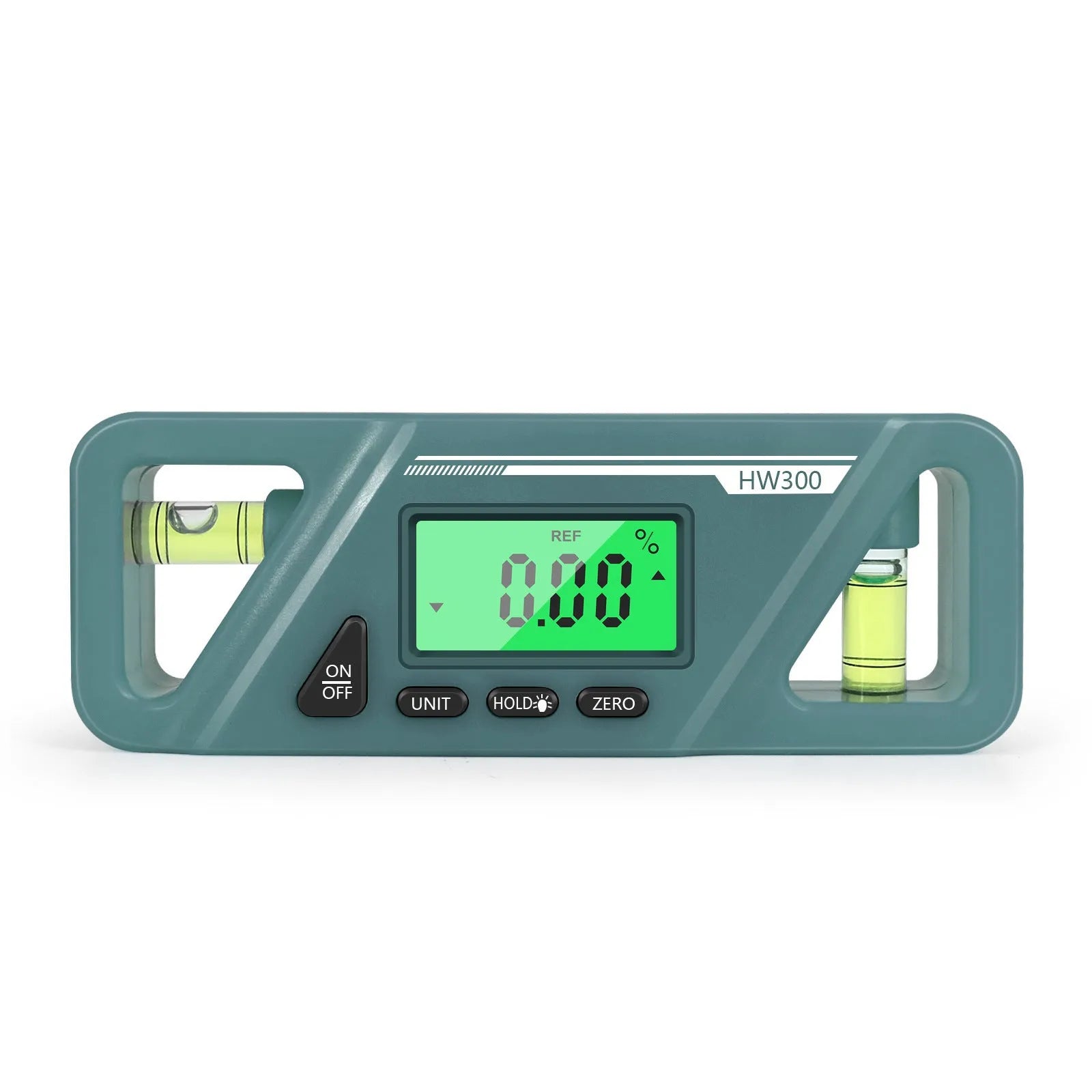

Digital Magnetic Inclinometer: High-Accuracy Angle and Slope Measurement Tool for Workshop & Site

Engineers, metalworkers, and DIY enthusiasts require reliable, precise tools for setting angles, checking slopes, and aligning components. The HW300 series digital inclinometer delivers this capability with a practical magnetic base and a clear digital readout. Designed for direct application on ferrous metal surfaces, this tool removes guesswork from tasks like machinery setup, fabrication, and construction alignment. Its compact, portable form and functional feature set make it a versatile addition to any measurement toolkit where space is limited or on-site verification is needed.

Features and Construction

Built around a core need for stable, precise measurement, this digital inclinometer combines a functional magnetic design with a capable digital sensor system. Its construction prioritises practical use in workshop and field environments.

Material and Build

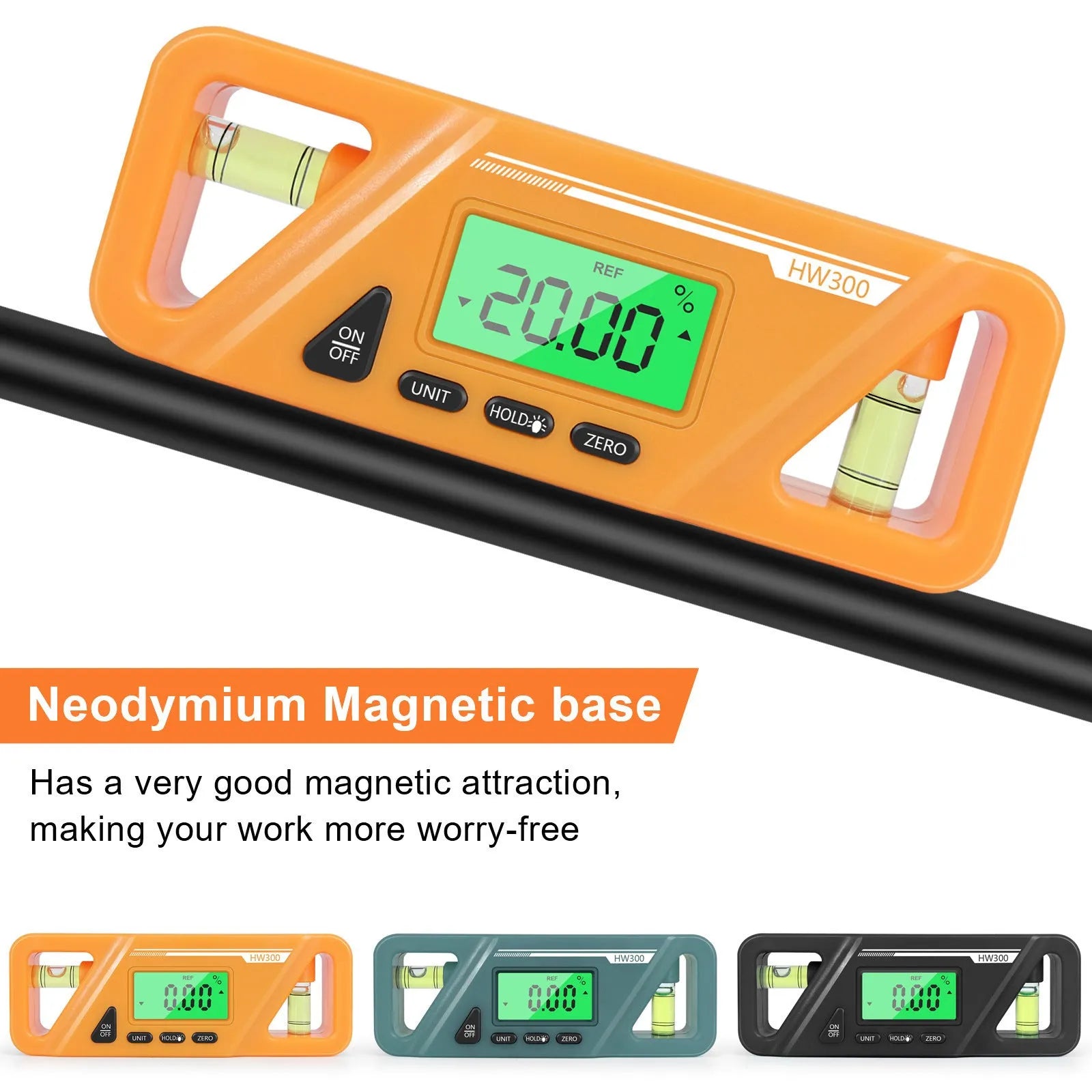

The tool’s housing is constructed from plastic ABS, forming a lightweight yet rigid casing that protects the internal electronic components. This material choice contributes directly to the device’s net weight of just 56 grams (without battery), making it highly portable. The design incorporates a magnetic base, which is the key feature for practical use, allowing the instrument to adhere securely to the surface of ferrous workpieces or machinery for stable, hands-free operation during measurement.

Size and Practical Fit

With compact external dimensions of 115mm by 42mm by 22mm, the unit is designed for use in confined spaces and for easy transport. Its form factor allows it to be used alongside other measurement tools, effectively expanding the range of possible measurements. The packaging confirms its portability, with a box size of 120x48x28mm and a total packaged weight of 72 grams, indicating it is supplied ready for individual use or integration into a larger toolkit.

Uses and Placement

This tool is designed for scenarios where precise angular measurement directly impacts the quality, safety, or functionality of a project. Its capabilities support both professional trade applications and serious home DIY work.

Event or Professional Use

In professional metalworking, engineering, and machinery installation, the magnetic adsorption feature is critical. It allows the gauge to be fixed to lathes, drill presses, welding jigs, or structural steel, enabling precise angle setting and verification without requiring a second pair of hands. The high accuracy of ±0.2° and repeatability of 0.1° provide the reliability needed for industrial calibration and quality control tasks, ensuring components fit and function as intended.

Everyday Home Use

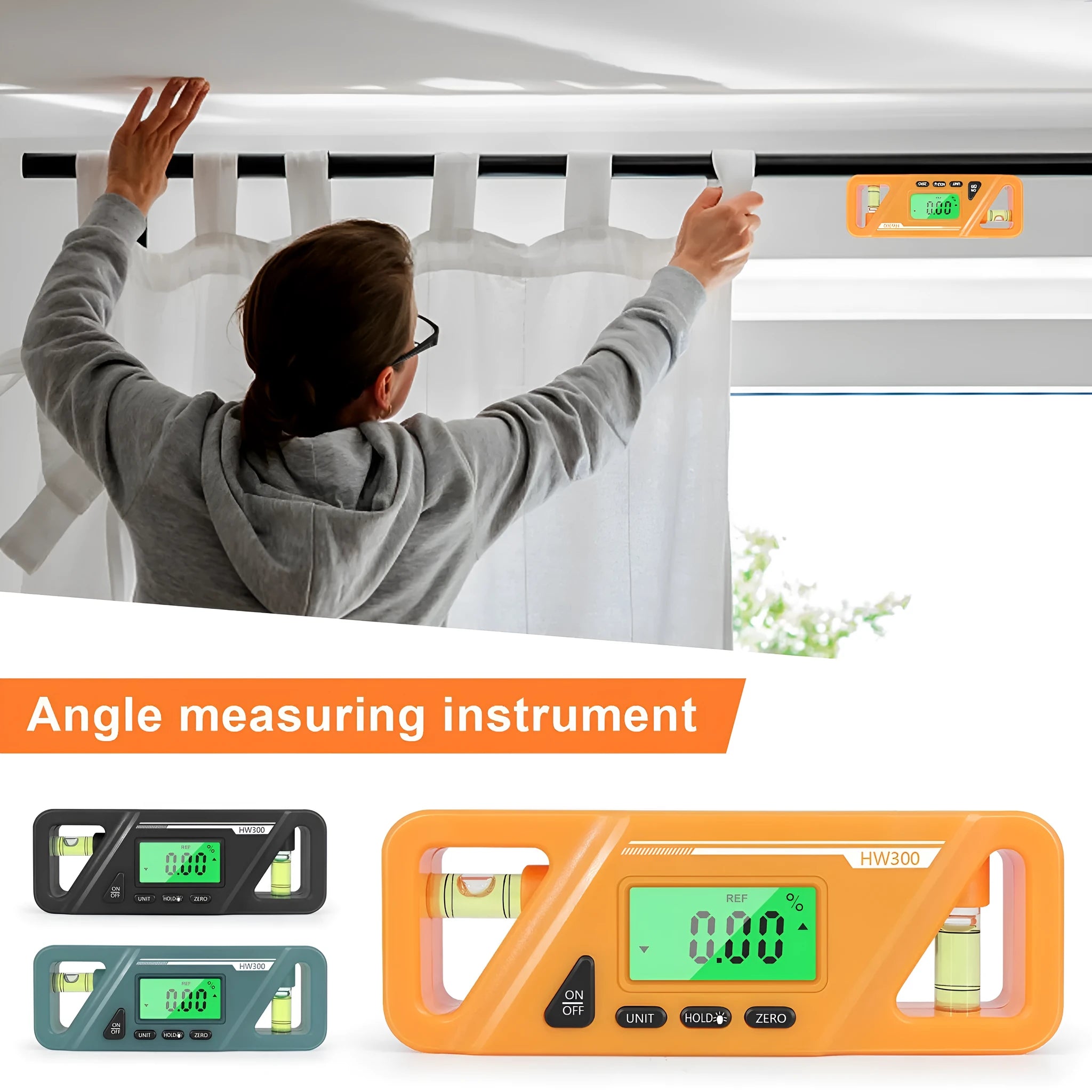

For the home workshop enthusiast, this inclinometer brings professional-grade measurement to projects like setting saw blade angles, aligning fence posts, checking the pitch of a roof or ramp, or levelling appliances. The data locking function is particularly useful for taking a reading in an awkward position and then viewing it comfortably, while the conversion between angle and slope measurements aids in tasks from landscaping to model building. Its operating temperature range of 0°C to 40°C covers most indoor and sheltered outdoor working conditions.

Benefits and Buying Value

The value of this measurement tool lies in its combination of precision, practicality, and portability. It addresses specific user problems by providing a digital, feature-enhanced alternative to traditional spirit levels and manual protractors.

Reuse and Low Maintenance

As a digital electronic tool with a simple plastic and magnetic construction, it requires minimal maintenance beyond basic care and battery replacement. Its design supports repeated use across multiple projects. The robust ABS housing helps protect the internal electronics from dust and minor impacts typical in a workshop environment, contributing to its potential for long-term reuse as part of a core measurement set.

Why Choose This Product

This inclinometer stands out for its specific combination of a magnetic base and a high-resolution digital display. The magnetic adsorption directly addresses the problem of holding a gauge steady on metal, a common challenge in relevant trades. The digital resolution of 0.05° (under 100°) provides a clear, unambiguous reading that surpasses the precision of visual estimation with analogue tools. For anyone needing to verify angles on metalwork or machinery with confidence and efficiency, this tool offers a targeted, functionally superior solution.
